Description
Axles are shipped with springs unattached. Please arrange for mounting upon delivery.
PRODUCT SPECS
- Standard Straight
- Capacity: 3,500lb (3.5K)
- Bolt Pattern: 5-4.5"
- Stud Size: 1/2"-20
- Tube Size: 2.38"
- Spring Type: Double Eye
- Spring Size: 1-3/4" (W) X 26" (L)
- Spring Capacity: 1,750lb
- Spring Mount Type: Underslung
- Brake Assembly Type: Electric
- Brake Assembly Size: 10" X 2-1/4"
- Cap Type: EZ Lube
PRODUCT FEATURES
- Highest-strength axle tube for industrial utility trailer axles
- Materials used allow a stiffer and stronger axle beam with no camber required
- Precision-machined spindles, made of forged carbon steel
- Replaceable unitized oil seal
- Precision machined bearing journals
- Spindles are friction welded into axle tubes for strength and alignment
Disclaimer:
Please be advised that all axle purchases are final and non-refundable. We encourage our customers to ensure the accuracy of their measurements before completing their order. It is essential to ensure the specifications required for your unit to avoid any inconvenience, as we cannot accept returns or exchanges due to incorrect sizing. Your attention to detail will help ensure that the product you receive meets your needs and expectations.

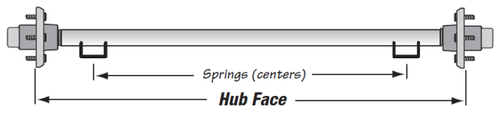

How to Properly Measure Your Trailer Axle:

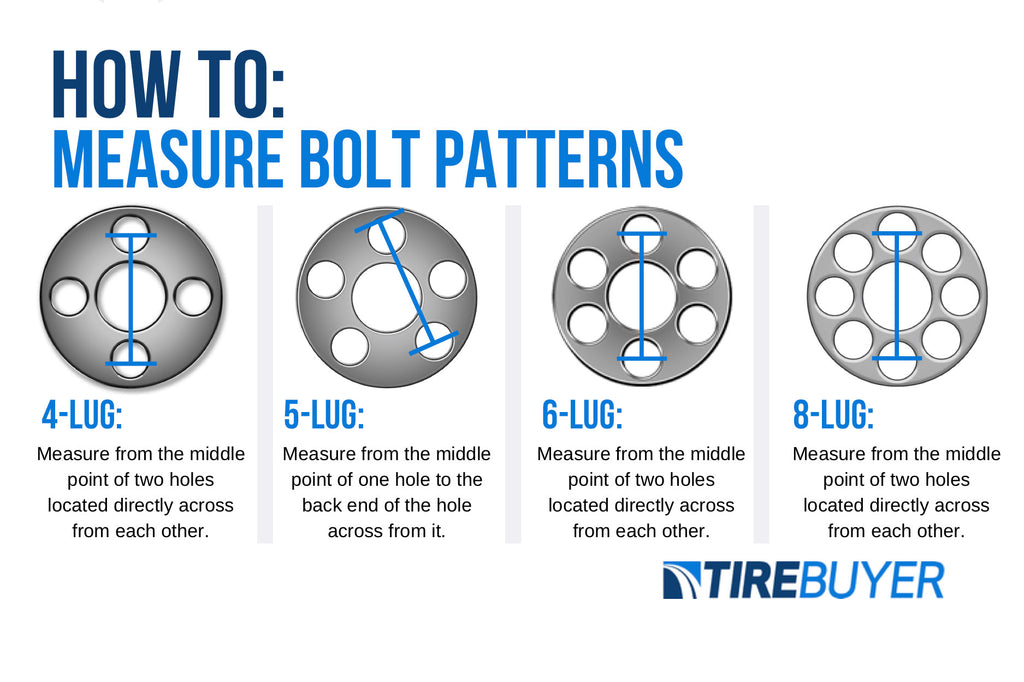

How to Properly Measure Your Trailer Wheel Bolt Pattern:
